Plough Shear Mixer

Providing you the best range of Plough Shear Mixer, with effective & timely delivery.

Product Details:

Minimum Order Quantity 1 Piece
Capacity 300 Litres
Brand BPE
Design Type Standard
Motor Power 5 HP
Material Stainless Steel
Power Source Electric

Features :
  • Low maintenance
  • Easy to use
  • Longer functional life
  • Fine quality
  • Rugged
  • Precise design

Additional Information :
  • Item Code : BPSM
  • Pay Mode Terms : L/C (Letter of Credit),
    T/T (Bank Transfer)
  • Port of Dispatch : Nava Sheva Mumbai
  • Production Capacity : 10 Units/Month
  • Delivery Time : 4 Weeks
  • Packaging Details : Wooden Packaging

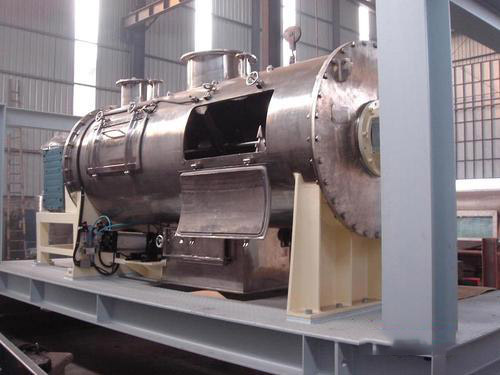

Plough Shear Mixer consists of a horizontal cylindrical container with multiple plough shaped shovels mounted on the main shaft. Bharat Process Equipment (BPE) offers a wide range of capacities from 5 liters to 20000 liters in all material grades.

Design Highlights:

  • The feed is subjected to a whirling, three-dimensional product movement.
  • Mixing elements are specially designed to lift the material from the inside wall of the container without squashing the particles against the wall.
  • High-speed choppers (optional) installed to disperse agglomerations and control granulation during the mixing process in co-ordination with the mixing elements.
  • Chopper Action Single or multiple choppers are located in the lower part of the mixing container in such a way that the chopper assembly is inserted into the wall of the container at points in between the flights of two adjacent mixing shovels.
  • The high-speed choppers remove lumps in the raw material, chop pasty additives and prevent formation of agglomerates on liquid addition.
  • The choppers can be switched on and off, independent of the main drive shaft. Thus, the influence of the chopper action on the product mix can be controlled.
  • Jacket for heating, cooling.
  • Wear resistant liner plates for abrasive products.
  • Split design stuffing boxes, Air-purging stuffing boxes, Mechanical Seals.
  • Spraying system for liquid injection.
